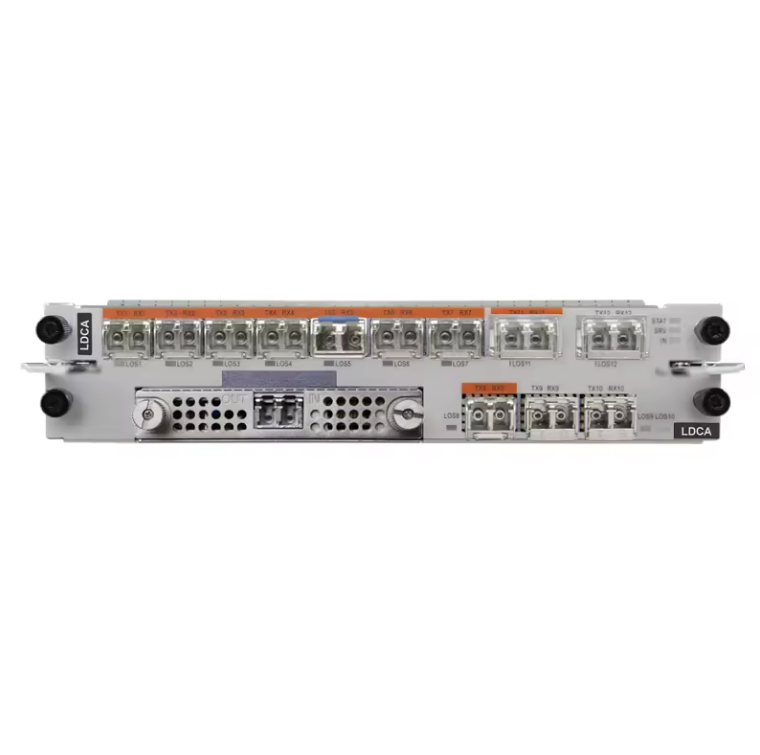

TNF1LDCA 2 x 100Gbit/s Or 10 x 10Gbit/s Multi-rate Ports Wavelength Conversion Board Optix OSN1800

1. Product Overview

The Huawei OSN1800 TNF1LDCA board is a high-performance transmission board in the Huawei OSN1800 series, mainly used in optical transmission networks, supporting high-speed data transmission and flexible business scheduling. It is suitable for small and medium capacity, short distance optical transmission networks, meeting the business requirements of high bandwidth and low latency.

2. Key characteristics

High capacity transmission: Supports transmission capacity of up to 10Gbps on a single board, meeting the needs of small and medium bandwidth businesses.

Multi service support: Supports various types of services such as OTN (Optical Transport Network), Ethernet, SDH, etc., adapting to complex network environments.

Flexible scheduling: Supports flexible wavelength scheduling and business configuration to meet transmission needs in different scenarios.

Low latency: Adopting advanced hardware design and signal processing technology to ensure low latency and high efficiency in data transmission.

High reliability: Supports hardware redundancy and fault protection mechanisms to ensure high availability and stability of the network.

Energy saving and environmental protection: adopting low-power design, meeting the requirements of green energy conservation.

3. Application scenarios

Metropolitan area network transmission: used for small and medium capacity, short distance metropolitan area network transmission to meet the high bandwidth needs of operators and enterprises.

Interconnection of access network: Used for interconnecting core nodes of the access network, providing high-speed and stable data transmission.

Enterprise Network: Used for high-speed interconnection of enterprise networks, supporting the transmission needs of cloud computing and big data businesses.

5G Bearer Network: As a key component of 5G network backhaul and fronthaul, it supports the high bandwidth and low latency requirements of 5G services.

4. Management and maintenance

Intelligent operation and maintenance: Supports Huawei iManager network management system to achieve centralized monitoring, configuration, and fault management of devices.

Automated configuration: supports automated business configuration and wavelength scheduling, reducing operational complexity.

Fault diagnosis: Built in fault diagnosis function, which can quickly locate and solve network problems.

5. Advantages

Large Capacity: Supports up to 10Gbps transmission capacity to meet future network expansion needs.

Flexibility: Supports multiple business types and flexible wavelength scheduling to adapt to complex network environments.

High reliability: Adopting redundant design and fault protection mechanism to ensure high availability of the network.

Low latency: Optimize signal processing technology to ensure efficient and low latency data transmission.

Energy saving and environmental protection: Low power design that meets the requirements of green networks.

6. Summary

The Huawei OSN1800 TNF1LDCA board is a high-performance, small to medium capacity optical transmission board suitable for scenarios such as metropolitan area networks, access networks, enterprise networks, and 5G bearer networks. It has the core advantages of high bandwidth, low latency, flexible scheduling, and high reliability, making it an ideal choice for building modern optical transmission networks
